HC-16T C Type Three Guide Column High Speed Precision Press
Basic Attributes
- Press Capacity 160 kN
- Stroke Length 20x25x30 mm
- Max. S.P.M. 800x700x600 S.P.M.
- Min. S.P.M. 200 S.P.M.
- Die Height 185-215x183-213x180-210 mm
- Die Height Adjustment 30 mm
- Slide Area 300x185 mm
- Bolster Area 430x280x70 mm
- Bolster Opening 90x330 mm
- Main Motor Power 4.0x4 kW×P
- Machine Weight 1.95 ton
- Model HC-16T
Description
Main Features of HC-16T Precision Press Machine
- Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long-termaccuracy. Ifs the best for continuous production.
- Double pillars and one plunger guide structure, manufactured from copper bush instead oftraditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
- Balancer device for optional to reduce vibration, make press more precision and stable.
- It's more convenient to adjust the die with the die height indicator and the hydraulic lockingdevice.
- HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy tooperate.

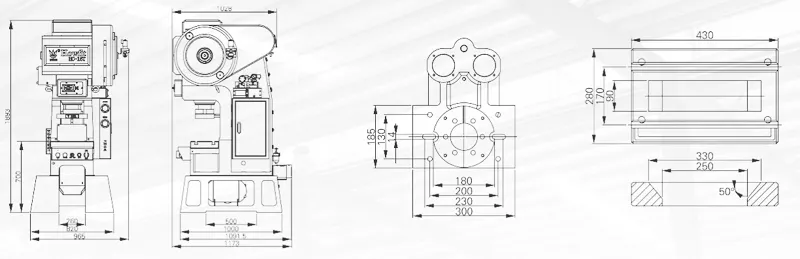

Dimension of the HC-16T Precision Press Machine
Main Specifications of HC-16T Precision Press Machine
[@@Specification]
Finished Products Produced By HC-16T Precision Press Machine
