HC-65TW C Type Three Guide Column High Speed Precision Press

HC-65TW C Type Three Guide Column High Speed Precision Press

Basic Attributes

  • Press Capacity 650 kN
  • Stroke Length 30x40x50 mm
  • Max. S.P.M. 600x550x500 S.P.M.
  • Min. S.P.M. 200 S.P.M.
  • Die Height 215-255x 210-250x205-255 mm
  • Die Height Adjustment 50 mm
  • Slide Area 600x400 mm
  • Bolster Area 890x580x130 mm
  • Bolster Opening 150x740 mm
  • Main Motor Power 11.0x4 kW×P
  • Machine Weight 9.2 ton
  • Model HC-65TW
Contact now
Description

Main Features of HC-65TW Precision Press Machine

  1. Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long-termaccuracy. Ifs the best for continuous production.
  2. Double pillars and one plunger guide structure, manufactured from copper bush instead oftraditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
  3. Balancer device for optional to reduce vibration, make press more precision and stable.
  4. It's more convenient to adjust the die with the die height indicator and the hydraulic lockingdevice.
  5. HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy tooperate.

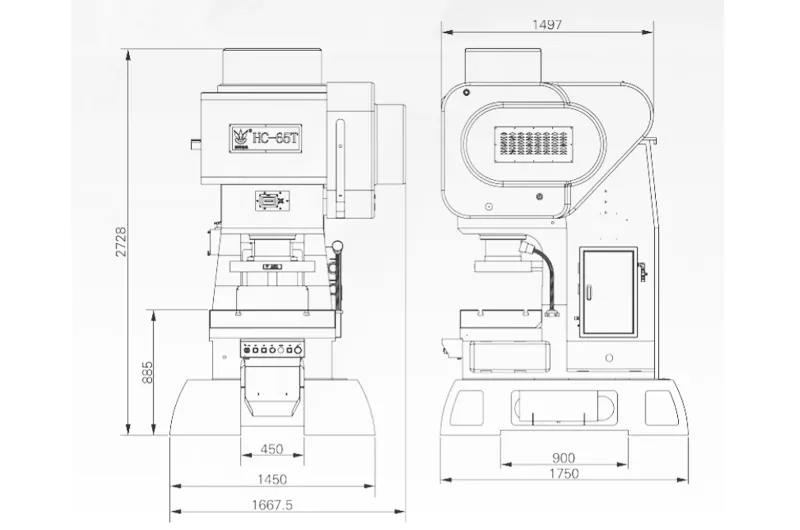

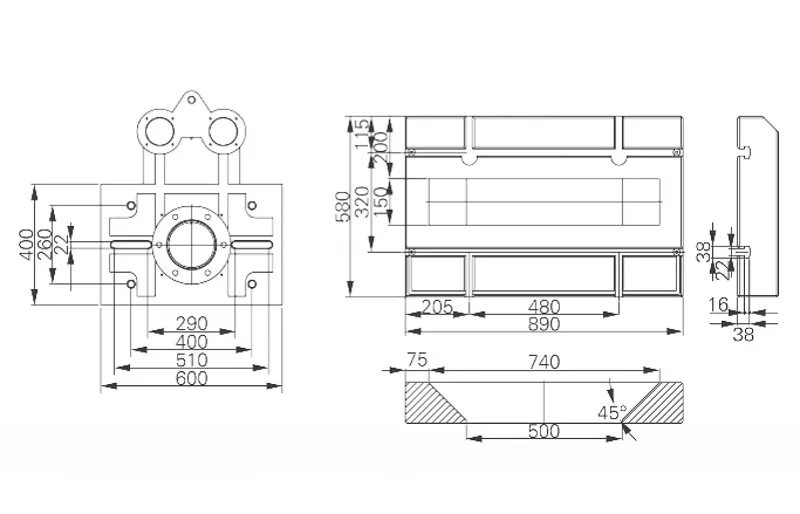

Dimension of the HC-65TW Precision Press Machine

Dimension of HC-65TWW High Speed Precision Press
Dimension of HC-65TWW High Speed Precision Press

Main Specifications of HC-65TW Precision Press Machine

[@@Specification]

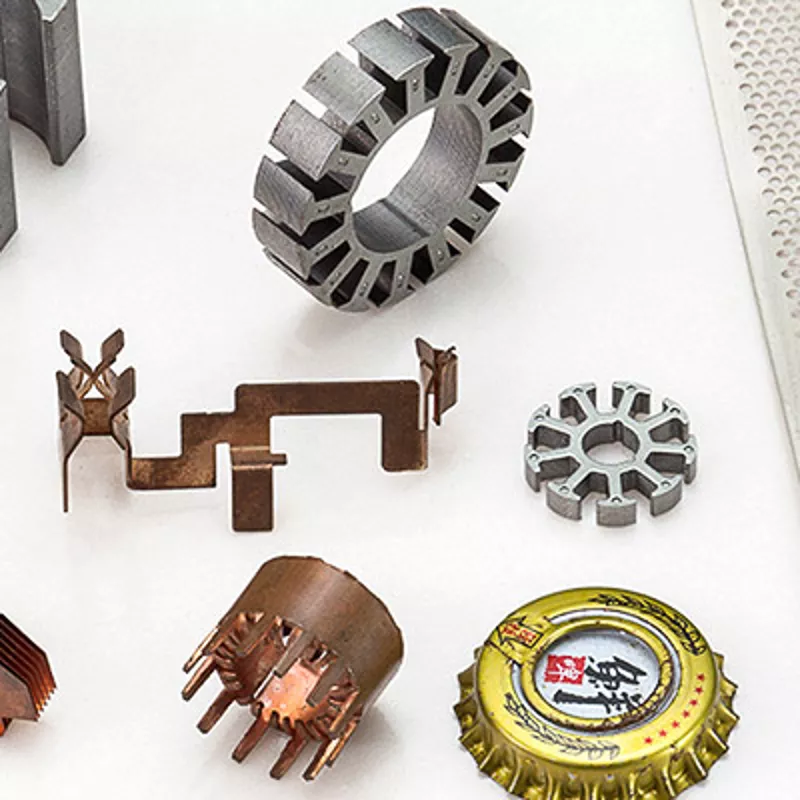

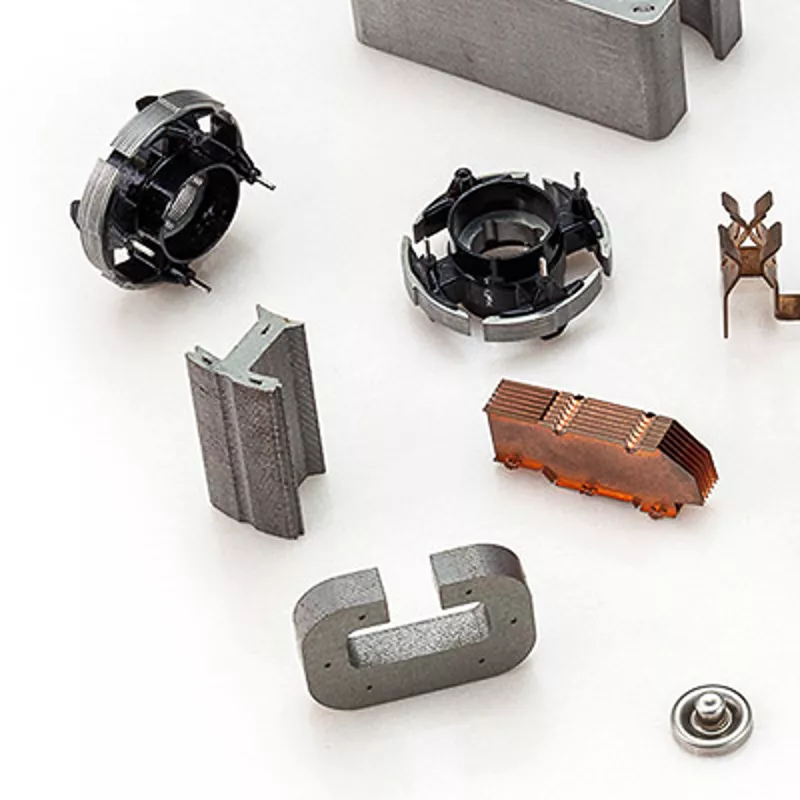

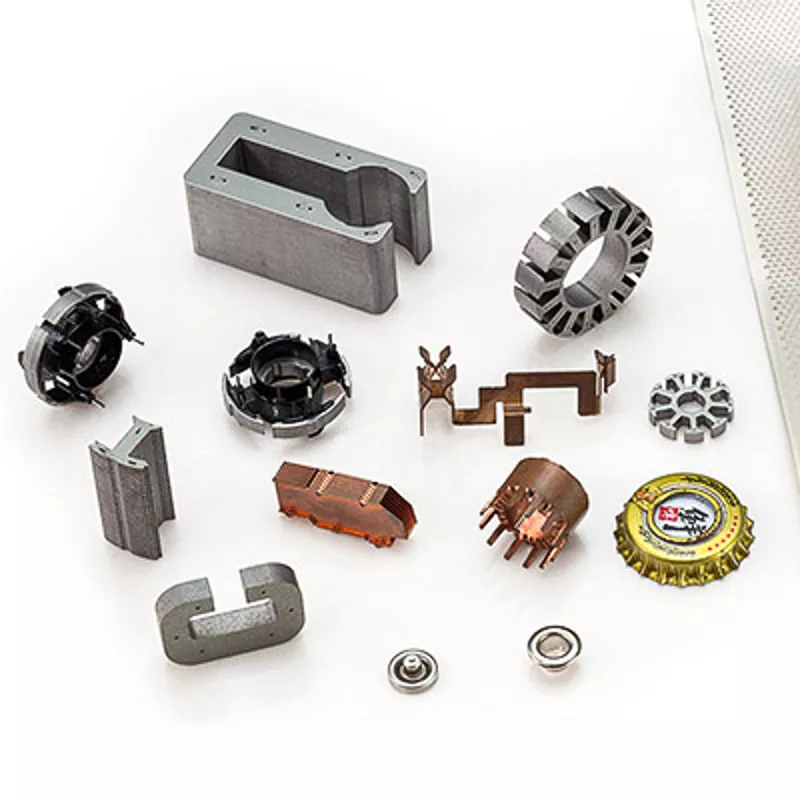

Finished Products Produced By HC-65TW Precision Press Machine

Advantages of HC-65TW Precision Press Machine

High speed press for EI lamination is suitable for EI sheet stamping. EI precision punch is a powerful toolfor mass production of EI. As long as the manufacturer matches a set of dies first, it can stamp outcontinuously on the precision punch. It has the advantages of high speed, high precision, economical benefitand wide utilization.

High speed press for EI lamination can be equipped with automatic feeders of different grades andspecifications for automatic production. Through a reasonable product mix, it is convenient to realize theproduction mode of one person managing multiple machines.

The machine structure consists of high rigidity casting iron, which guarantee the stability, the accuracy andthe long-term usage. With the forced lubrication, the thermal deformation would be minimized. The doublepillar and one plunger guide was made of brass and it reduced the friction to the minimum. Balance weightfor optional to reduce vibration. HMI is controlled by microcomputer. With the advanced computer controller,Howfit Presses are using unique design stamping operation software. The computer has strong function andlarge memory capacity. With the guidance parameter setting, it has the function of fault revelation andmakes the mechanical operation simpler.


Basic Attributes

  • Press Capacity 650 kN
  • Stroke Length 30x40x50 mm
  • Max. S.P.M. 600x550x500 S.P.M.
  • Min. S.P.M. 200 S.P.M.
  • Die Height 215-255x 210-250x205-255 mm
  • Die Height Adjustment 50 mm
  • Slide Area 600x400 mm
  • Bolster Area 890x580x130 mm
  • Bolster Opening 150x740 mm
  • Main Motor Power 11.0x4 kW×P
  • Machine Weight 9.2 ton
  • Model HC-65TW
