HC-25T C Type Three Guide Column High Speed Precision Press
Basic Attributes
- Press Capacity 250 kN
- Stroke Length 30x40x50 mm
- Max. S.P.M. 700x600x500 S.P.M.
- Min. S.P.M. 200 S.P.M.
- Die Height 210-240x205-235x200-230 mm
- Die Height Adjustment 30 mm
- Slide Area 320x220 mm
- Bolster Area 600x330x80 mm
- Bolster Opening 100x400 mm
- Main Motor Power 4.0x4 kW×P
- Machine Weight 3.6 ton
- Model HC-25T
Description
Main Features of HC-25T Precision Press Machine
- Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long-termaccuracy. Ifs the best for continuous production.
- Double pillars and one plunger guide structure, manufactured from copper bush instead oftraditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
- Balancer device for optional to reduce vibration, make press more precision and stable.
- It's more convenient to adjust the die with the die height indicator and the hydraulic lockingdevice.
- HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy tooperate.

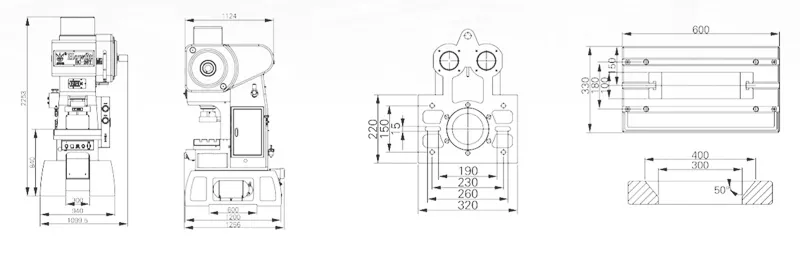

Dimension of the HC-25T Precision Press Machine
Main Specifications of HC-25T Precision Press Machine
[@@Specification]
Finished Products Produced By HC-25T
