HC-45T C Type Three Guide Column High Speed Precision Press
Basic Attributes
- Press Capacity 450 kN
- Stroke Length 30x40x50 mm
- Max. S.P.M. 700x600x500 S.P.M.
- Min. S.P.M. 200 S.P.M.
- Die Height 210-240x205-235x200-230 mm
- Die Height Adjustment 30 mm
- Slide Area 420x320 mm
- Bolster Area 680x455x90 mm
- Bolster Opening 100x500 mm
- Main Motor Power 5.5x4 kW×P
- Machine Weight 4.8 ton
- Model HC-45T
Description
Main Features of HC-45T Precision Press Machine
- Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long-termaccuracy. Ifs the best for continuous production.
- Double pillars and one plunger guide structure, manufactured from copper bush instead oftraditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
- Balancer device for optional to reduce vibration, make press more precision and stable.
- It's more convenient to adjust the die with the die height indicator and the hydraulic lockingdevice.
- HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy tooperate.

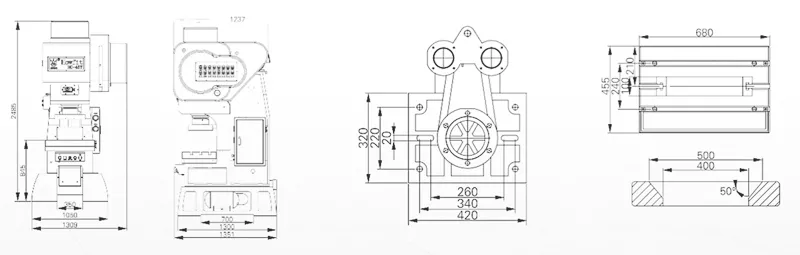

Dimension of the HC-45T Precision Press Machine
Main Specifications of HC-45T Precision Press Machine
[@@Specification]
Finished Products Produced By HC-45T Precision Press Machine
Modal Analysis Of Electric Motor High Speed Lamination Press Crankshaft
Crankshaft is an important structural part of the press used to transfer motion and power.In the process of work, the load is extremely complex, bearing a huge impact load, in addition, also affected by the role of alternating stress, seriously affect the crankshaft fatigue strength, prone to fatigue failure.With the development of Electric motor high speed lamination press, the load and working conditions of crankshaft are more severe.Under the action of periodic load, the premature fatigue failure occurs.So it is necessary to analyze the dynamic characteristics of crankshaft.
