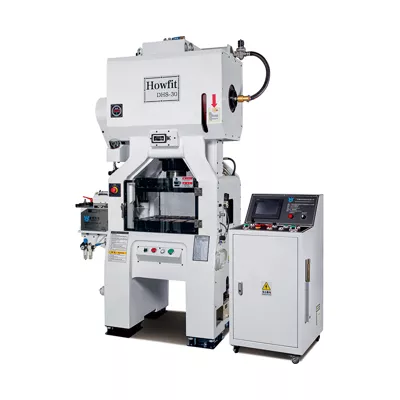

DHS-30T Gantry Frame Type Five Guide Column High-speed Precision Press
Basic Attributes
- Press Capacity 300 kN
- Stroke Length 20x25x30 mm
- Max. S.P.M. 800x700x650 S.P.M.
- Min. S.P.M. 200 S.P.M.
- Die Height 185-215x183-213x180-210 mm
- Die Height Adjustment 30 mm
- Slide Area 600x300 mm
- Bolster Area 550x450x80 mm
- Bolster Opening 100x480 mm
- Main Motor Power 3.7x4 kW×P
- Machine Weight 3.6 ton
- Model DHS-30T
Description
Main Features of DHS-30T Gantry Frame Precision Press
- It is a better press machine than the traditional C type, the structure of one-piece gantry frame bed, the structure is more stable.
- Integrated structure of guide pillar and slider, more stable slider action and better retention accuracy.
- High pressure forced lubrication, no oil pipe design inside the body to prevent oil circuit breakage and prolong service life.
- The new oil leakage prevention design can better prevent oil leakage from occurring.
- Human-machine interface microcomputer control, large screen display, simple and convenient operation.

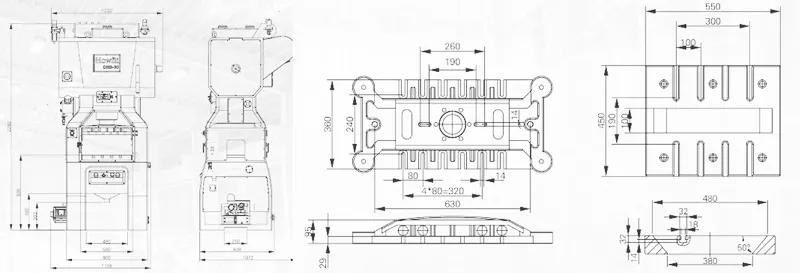

Dimension of the DHS-30T Gantry Frame Precision Press
Main Specifications of DHS-30T Gantry Frame Precision Press
[@@Specification]

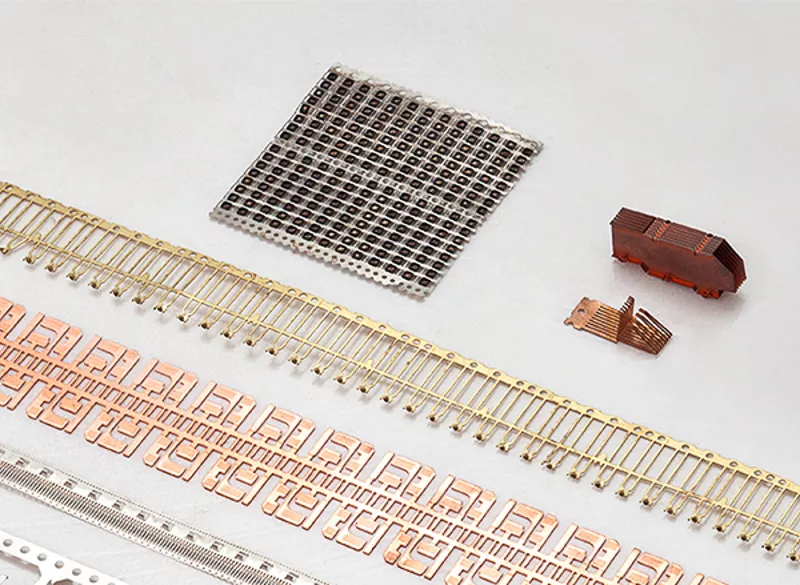

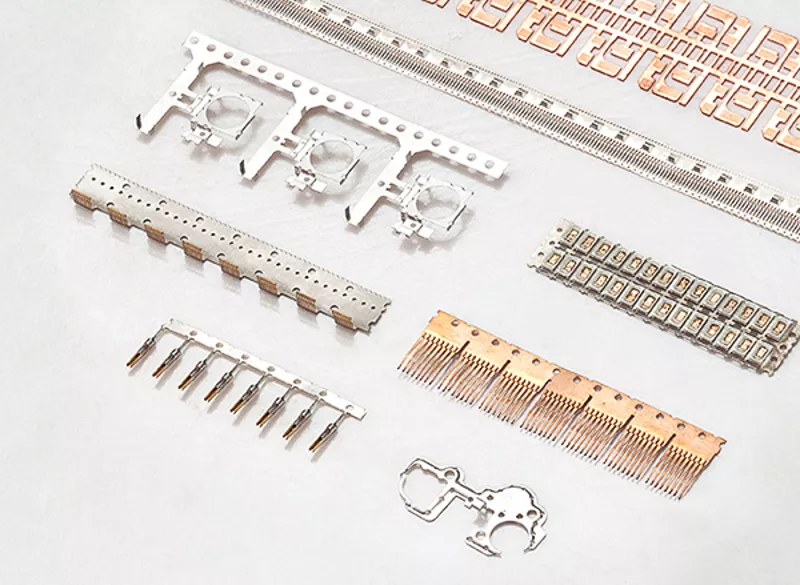

Finished Products Produced By DHS-30T Gantry Frame Precision Press
