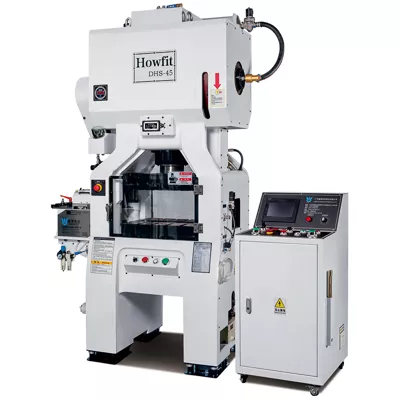

DHS-45T Gantry Frame Type Five Guide Column High-speed Precision Press
Basic Attributes
- Model DHS-45T
- Press Capacity 450 kN
- Stroke Length 20x30x40x mm
- Max. S.P.M. 700x600x500x S.P.M.
- Min. S.P.M. 200 S.P.M.
- Die Height 215-245x210-240x205-235x mm
- Die Height Adjustment 30 mm
- Slide Area 720x450 mm
- Bolster Area 700x500 mm
- Bolster Opening 120x620 mm
- Main Motor Power 7.5x4 kW×P
- Machine Weight 5.6 ton
Description
Main Features of DHS-45T Gantry Frame Precision Press
- It is a better press machine than the traditional C type, the structure of one-piece gantry frame bed, the structure is more stable.
- Integrated structure of guide pillar and slider, more stable slider action and better retention accuracy.
- High pressure forced lubrication, no oil pipe design inside the body to prevent oil circuit breakage and prolong service life.
- The new oil leakage prevention design can better prevent oil leakage from occurring.
- Human-machine interface microcomputer control, large screen display, simple and convenient operation.

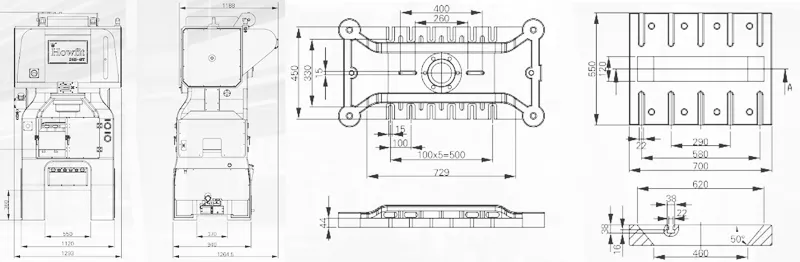

Dimension of the DHS-45T Gantry Frame Precision Press
Main Specifications of DHS-45T Gantry Frame Precision Press
[@@Specification]
Finished Products Produced By DHS-45T Gantry Frame Precision Press
