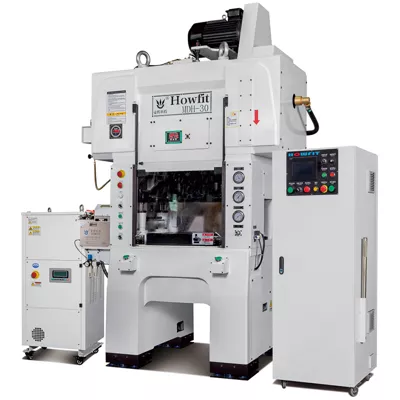

MDH-30T 4 Post Guide and 2 Plunger Guide Gantry Type Precision Press

Main Features of MDH-30T Gantry Type Precision Press

1. The press frame adopts high-strength cast iron, and the internal stress of the workpiece is eliminated through natural long time after precise temperature control and tempering, so that the performance of the bed workpiece reaches the best state.
2. The split gantry structure prevents the problem of opening of the machine body during loading and realizes the processing of high precision products.
3. The crank shaft is forged and shaped by alloy steel and then machined by four-axis Japanese machine tool. The reasonable machining process and assembly process ensure that the machine tool has small deformation and stable structure during operation.
4. The press adopts 4 post guide and 2 plunger guide guiding structure, which can reasonably control the displacement deformation between workpiece. Together with the forced oil supply lubrication system, the machine tool can minimize the slight thermal deformation under long time operation and partial load condition, which can guarantee the long-time high precision product processing.
5. Human-machine interface microcomputer control, to achieve the visual management of the operation, the number of products, machine status at a glance (the subsequent adoption of a central data processing system, a screen to know all machine work status, quality, quantity and other data).

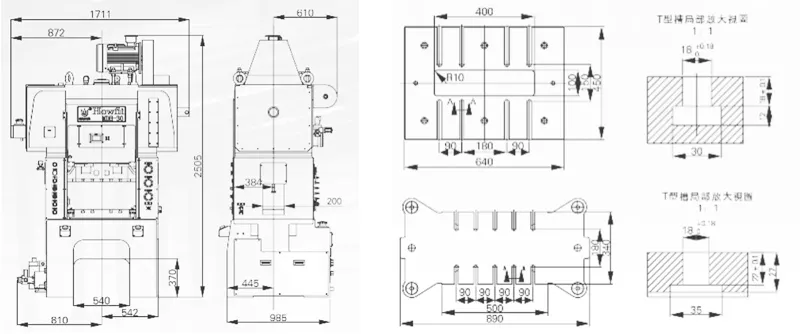

Dimension of the MDH-30T Gantry Type Precision Press

Main Specifications of MDH-30T Gantry Type Precision Press

[@@Specification]

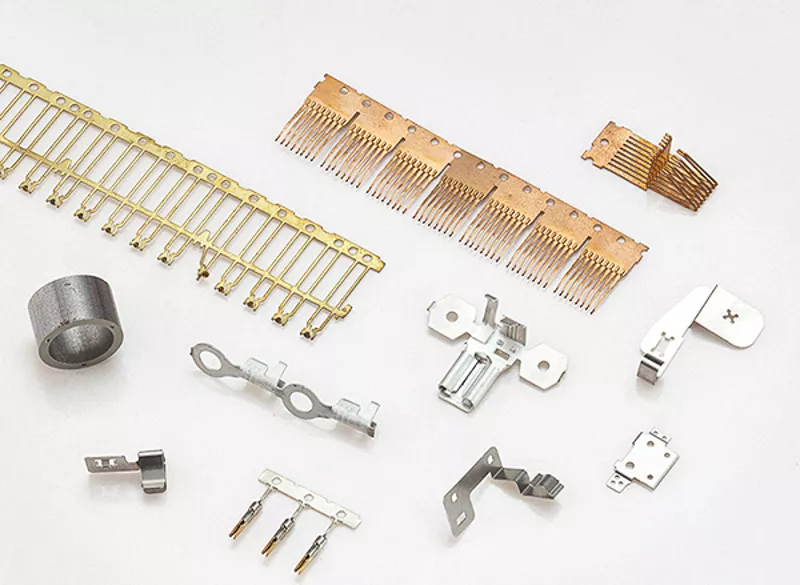

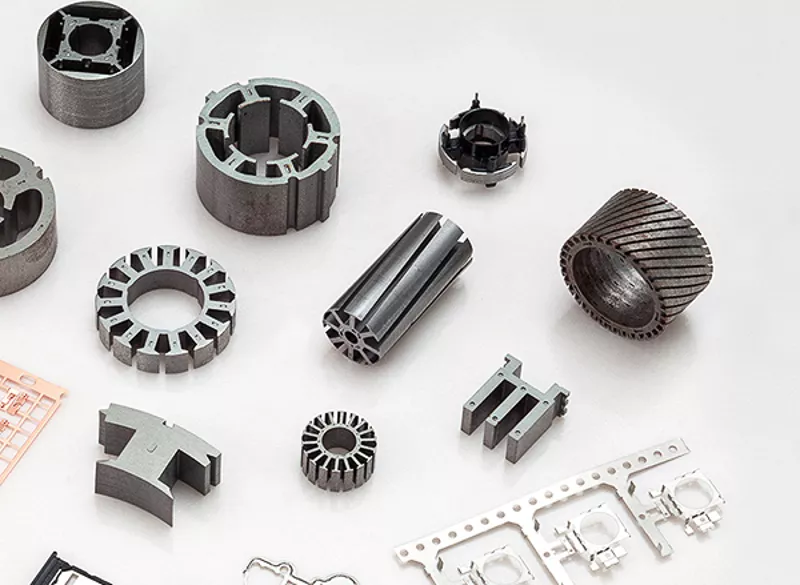

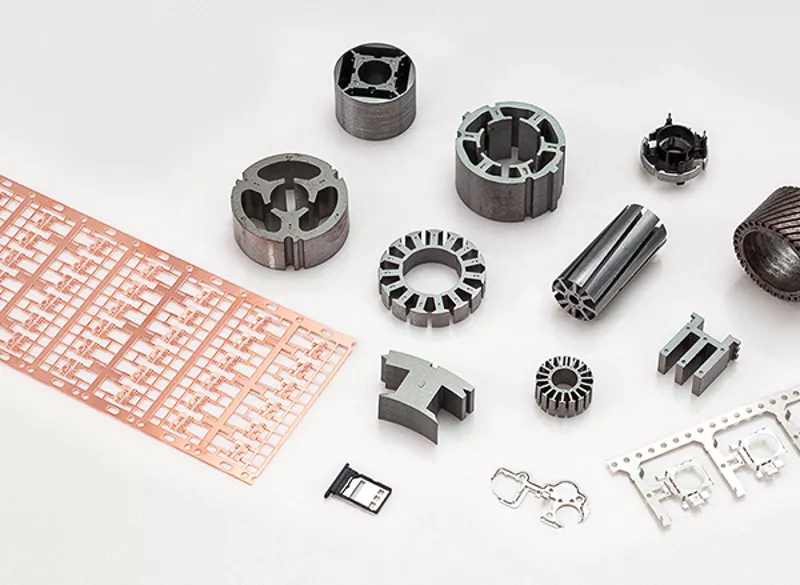

Finished Products Produced By MDH-30T Gantry Type Precision Press
