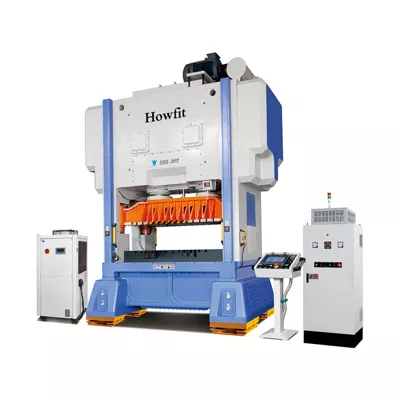

DDH-300T HOWFIT High Speed Precision Press

Main Features of DDH-300T HOWFIT High Speed Precision Press

1. The frame is made of high strength cast iron, which eliminates the internal stress of the workpiecethrough natural long time after precise temperature control and tempering, so that the performance ofthe workpiece of the frame reaches the best state.
2. The connection of the bed frame is fastened by the Tie Rod and the hydraulic power is used to prepressthe frame structure and greatly improve the rigidity of the frame.
3. Powerful and sensitive separation clutch and brake ensure precise positioning and sensitive braking.
4. Excellent dynamic balance design, minimize vibration and noise, and ensure the life of the die.
5. Crankshaft adopts NiCrMO alloy steel, after heat treatment, grinding and other precision machining.
6. The non-clearance axial bearing is used between the slide guide cylinder and the guide rod and matchwith the extended guide cylinder, so that the dynamic and static accuracy exceeds the special gradeprecision, and the life of the stamping die is greatly improved.
7. Adopt the forced lubrication cooling system, reduce the heat strain of the frame, ensure the stampingquality, prolong the press life.
8. The man-machine interface is controlled by microcomputer to realize visual management of operation,product quantity and machine tool status at a clear sight (central data processing system will beadopted in the future, and one screen will know the working status, quality, quantity and other data ofall machine tools).

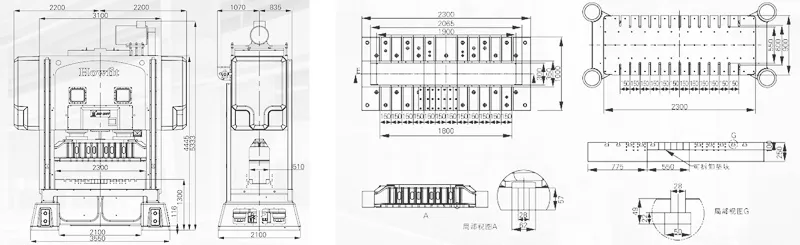

Dimension of the DDH-300T HOWFIT High Speed Precision Press

Main Specifications of DDH-300T HOWFIT High Speed Precision Press

[@@Specification]

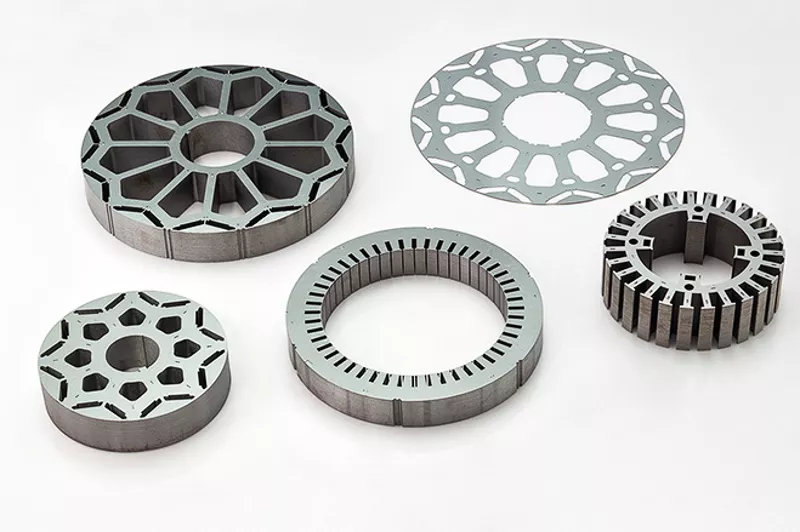

Finished Products Produced By DDH-300T HOWFIT High Speed Precision Press
