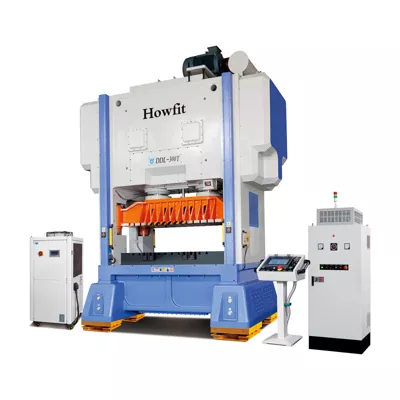

DDL-300T HOWFIT High Speed Precision Press

DDL-300T HOWFIT High Speed Precision Press

Basic Attributes

  • Model DDL-300T
  • Press Capacity 3,000 kN
  • Stroke Length 30 mm
  • Max. S.P.M. 450 S.P.M.
  • Min. S.P.M. 100 S.P.M.
  • Die Height 400-450 mm
  • Die Height Adjustment 50 mm
  • Slide Area 2300x900 mm
  • Bolster Area 2300x1000 mm
  • Bed Opening 2000x350 mm
  • Bolster Opening 1900x300 mm
  • Main Motor Power 55x4 kW×P
  • Machine Weight 65 ton
Contact now
Description

Main Features of DDL-300T HOWFIT High Speed Precision Press

  1. The frame is made of high strength cast iron, which eliminates the internal stress of the workpiecethrough natural long time after precise temperature control and tempering, so that the performance ofthe workpiece of the frame reaches the best state.
  2. The connection of the bed frame is fastened by the Tie Rod and the hydraulic power is used to prepressthe frame structure and greatly improve the rigidity of the frame.
  3. Powerful and sensitive separation clutch and brake ensure precise positioning and sensitive braking.
  4. Excellent dynamic balance design, minimize vibration and noise, and ensure the life of the die.
  5. Crankshaft adopts NiCrMO alloy steel, after heat treatment, grinding and other precision machining.
  6. The non-clearance axial bearing is used between the slide guide cylinder and the guide rod and matchwith the extended guide cylinder, so that the dynamic and static accuracy exceeds the special gradeprecision, and the life of the stamping die is greatly improved.
  7. Adopt the forced lubrication cooling system, reduce the heat strain of the frame, ensure the stampingquality, prolong the press life.
  8. The man-machine interface is controlled by microcomputer to realize visual management of operation,product quantity and machine tool status at a clear sight (central data processing system will beadopted in the future, and one screen will know the working status, quality, quantity and other data ofall machine tools).

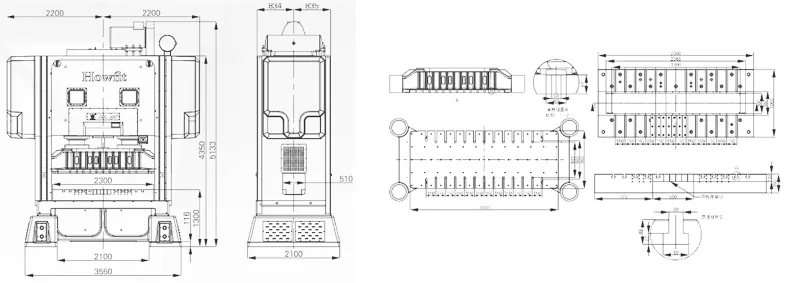

Dimension of the DDL-300T HOWFIT High Speed Precision Press

dimensions of DDL-300T HOWFIT High Speed Precision Press

Main Specifications of DDL-300T HOWFIT High Speed Precision Press

[@@Specification]

Finished Products Produced By DDL-300T HOWFIT High Speed Precision Press

parts of HOWFIT High Speed Precision Press


Basic Attributes

  • Model DDL-300T
  • Press Capacity 3,000 kN
  • Stroke Length 30 mm
  • Max. S.P.M. 450 S.P.M.
  • Min. S.P.M. 100 S.P.M.
  • Die Height 400-450 mm
  • Die Height Adjustment 50 mm
  • Slide Area 2300x900 mm
  • Bolster Area 2300x1000 mm
  • Bed Opening 2000x350 mm
  • Bolster Opening 1900x300 mm
  • Main Motor Power 55x4 kW×P
  • Machine Weight 65 ton
Contact now

We are keeping advanced technology and high performance, that’s why our clients choose us.
