MARX-40T Knuckle Type High Speed Precision Press
Basic Attributes
- Model MARX-40T
- Press Capacity 400 kN
- Stroke Length 16x20x25x30 mm
- Max. S.P.M. 1000x900x850x800 S.P.M.
- Min. S.P.M. 180 S.P.M.
- Die Height 190-240 mm
- Die Height Adjustment 50 mm
- Slide Area 750x340 mm
- Bolster Area 750x500 mm
- Bed Opening 560x120 mm
- Bolster Opening 500x100 mm
- Main Motor Power 15x4 kW×P
- Machine Weight 8 ton
Main Features of MARX-40T High Speed Precision Press
- The knuckle type press maximizes its mechanism characteristics.it has the characteristics high rigidity.High accuracy and good heat balance.
- Equipped with complete counterbalance, reduce the displacement of die height due to the stamping speedchange, and reduce the bottom dead point displacement of the first stamping and the second stamping.
- Adopted balance mechanism to balance each side1 s force, its structure is eight-sided needle bearingguiding, further improve the eccentric load capacity of the slider.
- New non-backlash clutch brake with long life and low guiding, further more quiet press work. The size ofthe bolster is 1100mm (60 tonnage) and 1500mm (80 tonnage), which is the widest for their tonnage in ourfull range of products.
- With servo die height adjustment function, and with die height memory function, reduce the mold changetime and improve production efficiency.
Perfect Stamping Effect
Horizontally symmetrical symmetrical toggle linkage design ensure the slider moving smoothly near the bottomdead center and achieve a perfect stamping result,which meets the stamping requirements of lead frame andother products.Meanwhile,the motion mode of the slider reduces the impact on the mould at the time ofhigh-speed stamping and prolongs the mould service life.
Good Rigidity and High Precision
The slider is guided by a guide of double plungers and octahedral flat roller with nearly no clearance init.lt has good rigidity,high inclined loading resistance capability,and high punch press precision.Highimpact-resisting and wear-resisting property of the Knuckle Type High Speed Precision Press guide materilsguarantee long-term stability of the press machine precision and prolong the intervals of repairing mould.

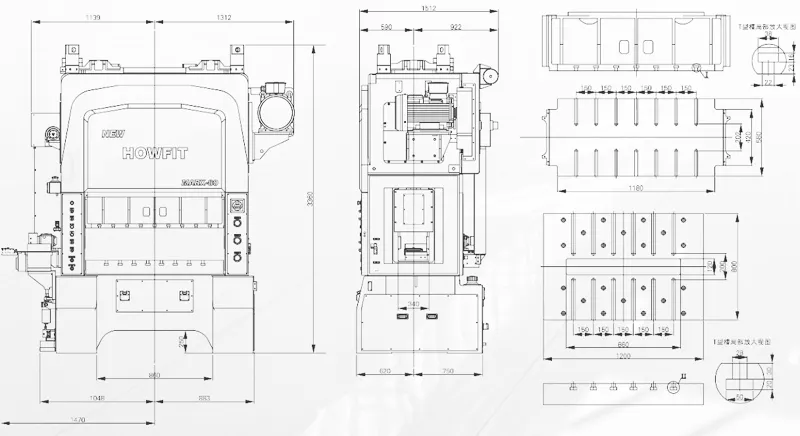

Dimension of the MARX-40T High Speed Precision Press
Main Specifications of MARX-40T High Speed Precision Press
[@@Specification]
Finished Products Produced By MARX-40T High Speed Precision Press
